Nagsim_SM.3D – nagsheet

Simulation of three dimensional
Sheet Forming processes using FEA

Eliminate Trial & Error in Forming

Friendly and Easy to use

NAGSIM_SM.3D provides a complete and easy-to-use solution from creating a model of the forming operation to post processing of simulation results

Automatic Meshing

Program incorporates an automatic element mesher for meshing and remeshing of part and tools.

Predict to eliminate defects

Accurate prediction of material deformation allows debugging the forming process to eliminate defects.

Tool Stress Analysis

NAGSIM_SM.3D can be used to predict forming loads and elastic stresses in the tools

FEA Solver

NAGSIM_SM.3D uses an incremental finite element analysis solver that is specifically designed for sheet metal forming processes. The program uses two types of elements , a pressure modified tetra element and a brick element for automatic meshing and analysis. NAGSIM_SM.3D can predict deformation in any three dimensional sheet forming process. However, the solver uses a Rigid-Plastic formulation that does not include elastic deformation of the sheet.

Simulation of ONE OPERATION

NAGSIM_SM.3D simulates one operation at a time. The part geometry can be imported in a STL format or from a previous operation simulation

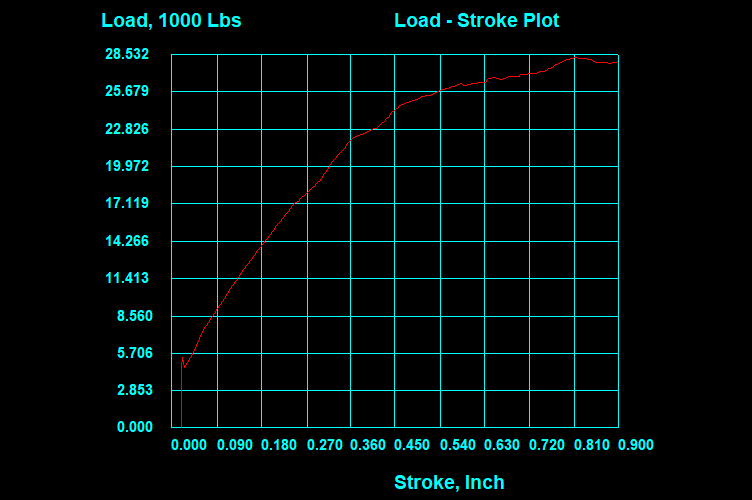

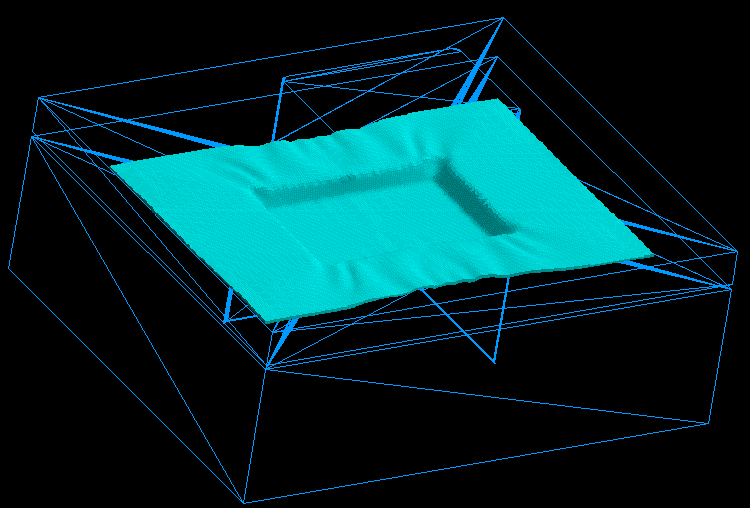

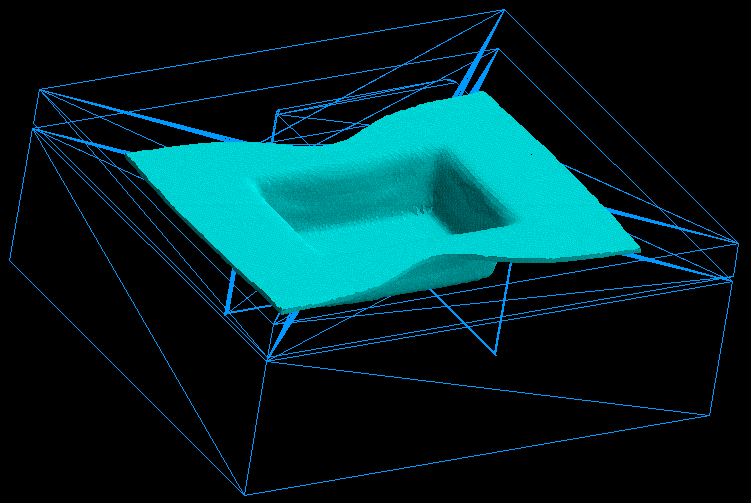

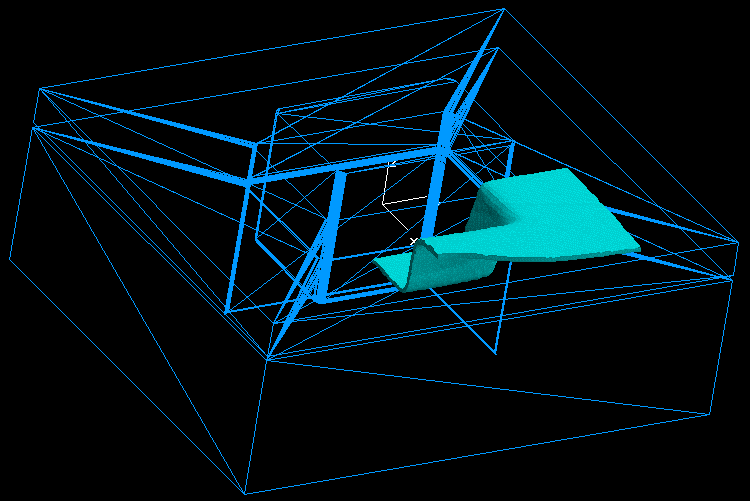

Simulation Results

Training

Extensive training on the software is provides through training classes at our facility in Canton, MI., USA. We also provide training through GoToMeeting web meetings.
