Simulation of two dimensional
Sheet Forming processes using FEA
Eliminate Trial & Error in Forming
Friendly and Easy to use
NAGSIM_SM.2D provides a complete and easy-to-use solution from creating a model of the forming operation to post processing of simulation results
Automatic Meshing
Program incorporates an automatic element mesher for meshing and remeshing of part and tools.
Predict to eliminate defects
Accurate prediction of material deformation allows debugging the forming process to eliminate defects.
Tool Stress Analysis
NAGSIM_SM.2D can be used to predict forming loads and elastic stresses in the tools
FEA Solver
NAGSIM_SM uses an incremental finite element analysis solver that is specifically design for metal forming operations specifically for sheet metal processes. However, the solver does not include the elastic deformation of the sheet and therefore does not predict spring back in the current version.
NAGSIM_SM.2D can predict deformation in round parts ( axisymmetric deformation) and in long parts ( Plane strain deformation).
Simulation of Complete Sequence
NAGSIM_SM.2D can simulation the complete forming sequence for the part

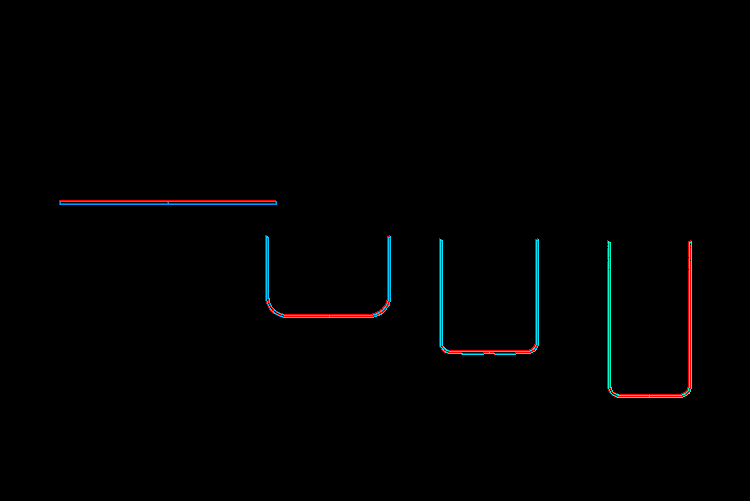

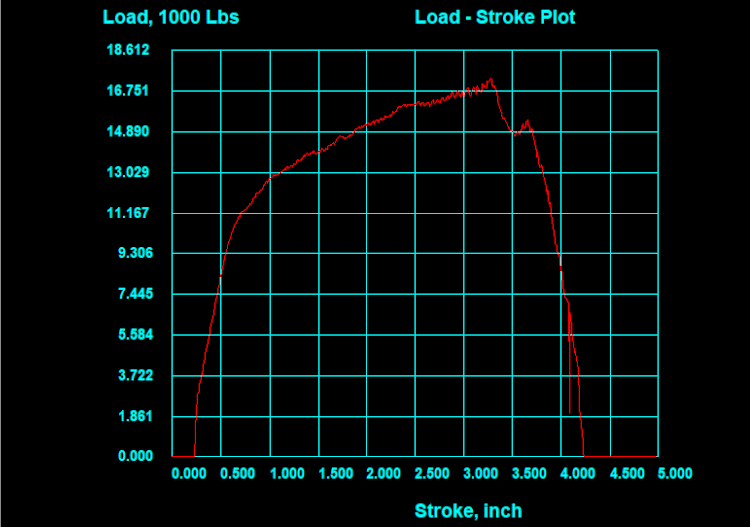

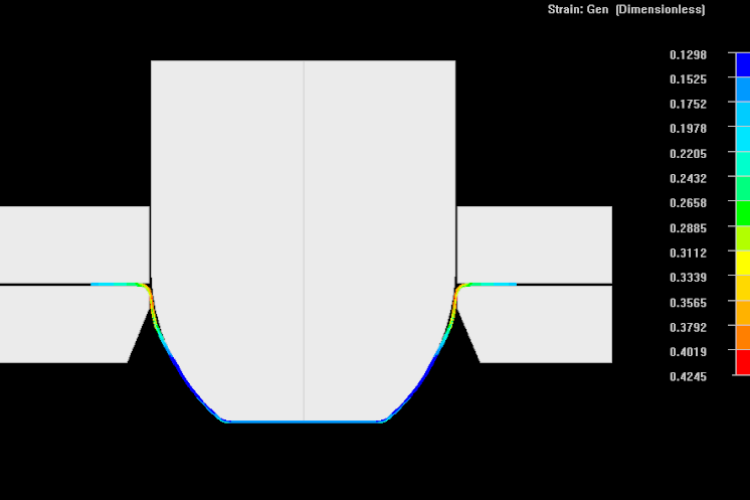

Simulation Results
Training
Extensive training on the software is provides through training classes at our facility in Canton, MI., USA. We also provide training through GoToMeeting web meetings.
Our offer
- Program is provided on yearly lease and perpetual lease
- Support, training and free updates are included in yearly lease
- Contact us for a detailed quotation
